Parameter name | Indoor P5(640x640) | ||||
---|---|---|---|---|---|
Module parameter | Pixel structure | RGB | |||
Module parameter | LED Specifications | SMD2121 | |||
Module parameter | Pixel pitch (mm) | 5 | |||
Module parameter | Module resolution (W × H) | 32×32 | 64×32 | ||
Module parameter | Module size (mm) | 160(W)×160(H)×15(D) | 320(W)×160(H)×15(D) | ||
Cabinet composition | Cabinet module composition (W × H) | 4×4 | 2×4 | ||
Cabinet composition | Cabinet resolution (W × H) | 128×128 | |||
Cabinet composition | Cabinet size (mm) | 640(W)×640(H)×75 (D) | |||
Cabinet composition | Cabinet material | Die-cast aluminum | |||
Cabinet composition | Weight (kg/PCS) | 11 | |||
Cabinet composition | Pixel density (dots/㎡) | 40000 | |||
Cabinet composition | Cabinet flatness (mm) | ≤ 0.2 | |||
Optical parameter | Brightness (nits) | ≥800 adjustable | |||
Optical parameter | Color temperature (K) | 3000-9300K adjustable | |||
Optical parameter | Gray level (Bit) | 12/14/16 | |||
Optical parameter | Horizontal viewing angle ( °) | 140 | |||
Optical parameter | Vertical viewing angle ( °) | 140 | |||
Optical parameter | Luminous point center distance deviation | <3%< td=""> | |||
Optical parameter | Brightness uniformity | ≥97% | |||
Optical parameter | Chromaticity uniformity | ±0.003Cx, within Cy | |||
Optical parameter | Maximum contrast | ≥3000:1 | |||
Electrical parameter | Peak power consumption (W/㎡) | 410 | 390 | ||
Electrical parameter | Average power consumption (W/㎡) | 200 | 190 | ||
Electrical parameter | Power supply requirements | AC85-264V (50-60Hz) | |||
Processing performance | Drive mode | constant current drive | |||
Processing performance | Frame change frequency (Hz) | 60 | |||
Processing performance | Refresh rate (Hz) | ≥ 1920 | |||
Using parameter | Typical life (hrs) | 100000 | |||
Using parameter | Maintenance method | Front/rear maintenance | |||
Using parameter | Operating temperature range (°C) | -20~+65 | |||
Using parameter | Operating humidity range (RH) | without condensation 10 ~ 85% |

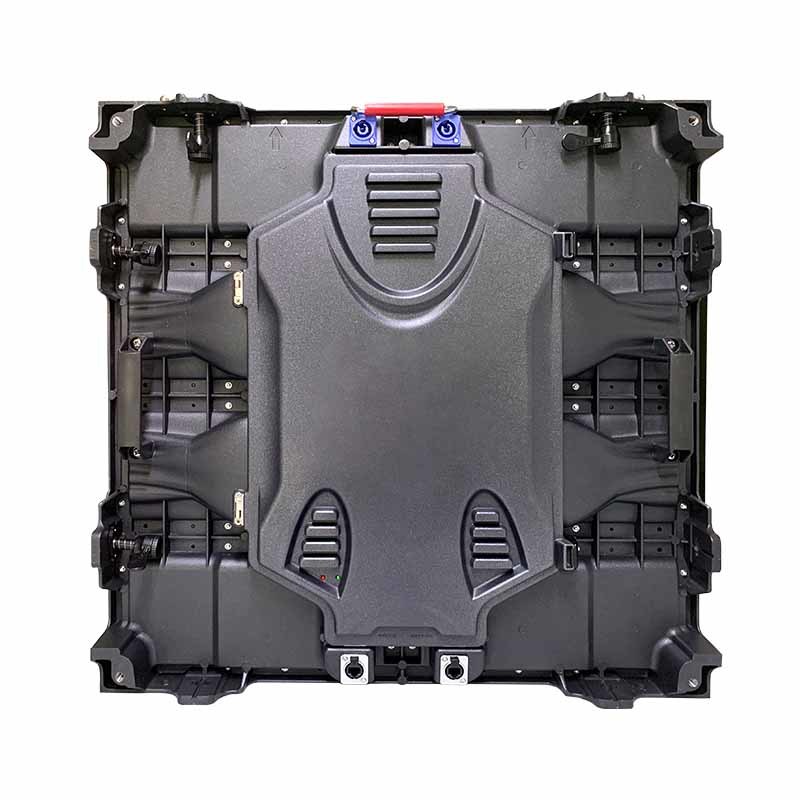

Indoor P5 (640X640) series LED display
Application Type: Chain store , Indoor advertising column , commercial display
Color: Full-color
Cabinet Material: Die-casting aluminum
Usage: Indoor
Recommend Viewing Distance: ≥5m
Standard Size: 640x640mm
Special Size: Can be customized
Special Requirement: Can be customized
MOQ: 1SQM
ENQUIRE ONLINE
Categories: INDOOR SERIES, LED SCREEN
