| Parameter name | Indoor P2(640x480) | ||
|---|---|---|---|
| Module parameter | Pixel structure | RGB | |
| Module parameter | LED Specifications | SMD1515 | |
| Module parameter | Pixel pitch (mm) | 2 | |
| Module parameter | Module resolution (W × H) | 160×80 | |
| Module parameter | Module size (mm) | 320(W)×160(H)×15(D) | |
| Cabinet composition | Cabinet module composition (W × H) | 2×3 | |
| Cabinet composition | Cabinet resolution (W × H) | 320×240 | |
| Cabinet composition | Cabinet size (mm) | 640(W)×480(H)×75 (D) | |
| Cabinet composition | Cabinet material | Die-cast aluminum | |
| Cabinet composition | Weight (kg/PCS) | 12 | |
| Cabinet composition | Pixel density (dots/㎡) | 25000 | |
| Cabinet composition | Cabinet flatness (mm) | ≤ 0.2 | |
| Optical parameter | Brightness (nits) | ≥600 adjustable | |
| Optical parameter | Color temperature (K) | 3000-9300K adjustable | |
| Optical parameter | Gray level (Bit) | 12/14/16 | |
| Optical parameter | Horizontal viewing angle ( °) | 140 | |
| Optical parameter | Vertical viewing angle ( °) | 140 | |
| Optical parameter | Luminous point center distance deviation | <3%< td=""> | |
| Optical parameter | Brightness uniformity | ≥97% | |
| Optical parameter | Chromaticity uniformity | ±0.003Cx, within Cy | |
| Optical parameter | Maximum contrast | ≥3000:1 | |
| Electrical parameter | Peak power consumption (W/㎡) | 320 | |
| Electrical parameter | Average power consumption (W/㎡) | 140 | |
| Electrical parameter | Power supply requirements | AC85-264V (50-60Hz) | |
| Processing performance | Drive mode | constant current drive | |
| Processing performance | Frame change frequency (Hz) | 60 | |
| Processing performance | Refresh rate (Hz) | ≥ 1920 | |
| Using parameter | Typical life (hrs) | 100000 | |
| Using parameter | Maintenance method | Front/rear maintenance | |
| Using parameter | Operating temperature range (°C) | -20~+65 | |
| Using parameter | Operating humidity range (RH) | without condensation 10 ~ 85% | |

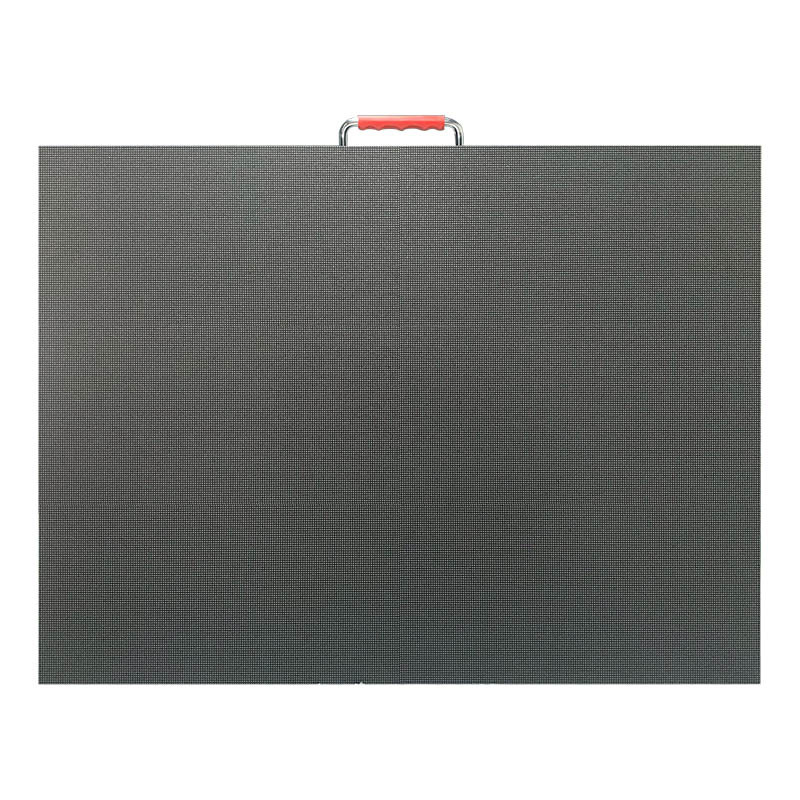

Indoor series P2 (640X480) LED display
Application Type: Chain store , Indoor advertising column , commercial display
Color: Full-color
Cabinet Material: Die-casting aluminum
Usage: Indoor
Recommend Viewing Distance: ≥2m
Standard Size: 640x480mm
Special Size: Can be customized
Special Requirement: Can be customized
MOQ: 1SQM
