| Parameter name | Outdoor S8(512x512) | ||
|---|---|---|---|
| Module parameter | Pixel structure | RGB | |
| Module parameter | LED Specifications | SMD3535 | |
| Module parameter | Pixel pitch (mm) | 8 | |
| Module parameter | Module resolution (W × H) | 32×16 | |
| Module parameter | Module size (mm) | 256(W)×128(H)×18(D) | |
| Cabinet composition | Cabinet module composition (W × H) | 2×4 | |
| Cabinet composition | Cabinet resolution (W × H) | 64×64 | |
| Cabinet composition | Cabinet size (mm) | 512(W)×512(H)×80 (D) | |
| Cabinet composition | Cabinet material | Die-cast aluminum | |
| Cabinet composition | Weight (kg/PCS) | 10 | |
| Cabinet composition | Pixel density (dots/㎡) | 15625 | |
| Cabinet composition | Cabinet flatness (mm) | ≤ 0.2 | |
| Optical parameter | Brightness (nits) | ≥6000 adjustable | |
| Optical parameter | Color temperature (K) | 3000-9300K adjustable | |
| Optical parameter | Gray level (Bit) | 12/14/16 | |
| Optical parameter | Horizontal viewing angle ( °) | 120 | |
| Optical parameter | Vertical viewing angle ( °) | 120 | |
| Optical parameter | Luminous point center distance deviation | <3%< td=""> | |
| Optical parameter | Brightness uniformity | ≥97% | |
| Optical parameter | Chromaticity uniformity | ±0.003Cx, within Cy | |
| Optical parameter | Maximum contrast | ≥3000:1 | |
| Electrical parameter | Peak power consumption (W/㎡) | 830 | |
| Electrical parameter | Average power consumption (W/㎡) | 400 | |
| Electrical parameter | Power supply requirements | AC85-264V (50-60Hz) | |
| Processing performance | Drive mode | constant current drive | |
| Processing performance | Frame change frequency (Hz) | 60 | |
| Processing performance | Refresh rate (Hz) | ≥ 1920 | |
| Using parameter | Typical life (hrs) | 100000 | |
| Using parameter | Maintenance method | Front/rear maintenance | |
| Using parameter | Operating temperature range (°C) | -20~+65 | |
| Using parameter | Operating humidity range (RH) | without condensation 10 ~ 85% | |

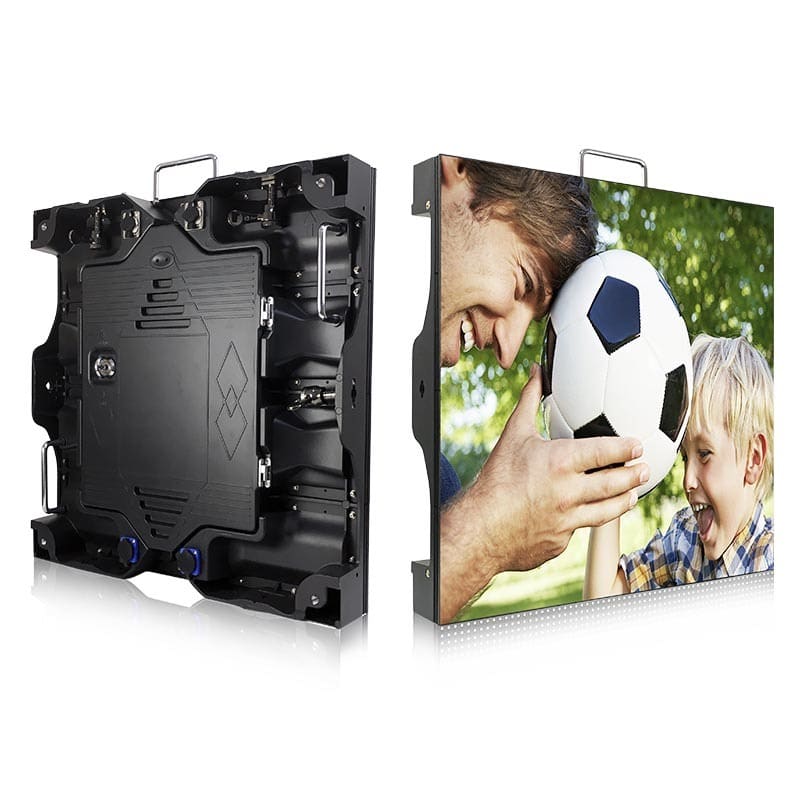

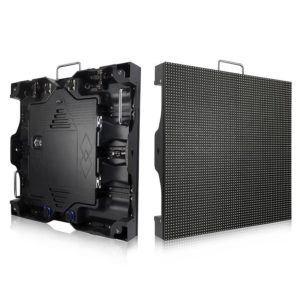

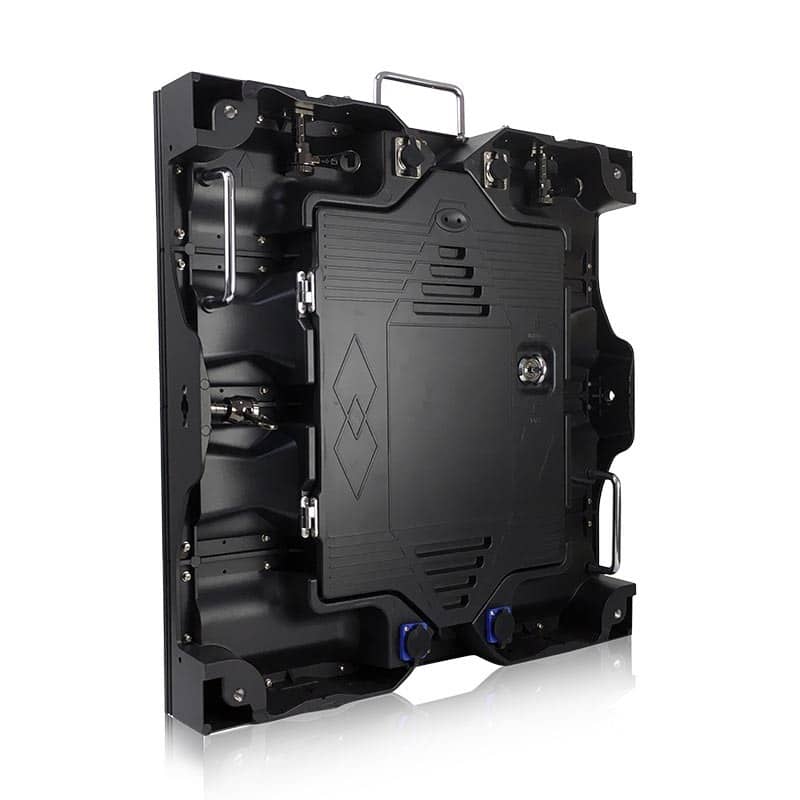

Outdoor S8 (512×512) series LED display
Application Type: Advertising media, outdoor billboards, gymnasiums
Color: Full-color
Cabinet Material: Die-casting aluminum
Usage: Outdoor
Recommend Viewing Distance: ≥8m
Standard Size: 512x512mm
Special Size: Can be customized
Special Requirement: Can be customized
MOQ: 1SQM
ENQUIRE ONLINE
